Self-Retracting Devices

Gemtor self-retracting lifelines and lanyards automatically extend and retract permitting a worker freedom of movement while preventing slack line and providing continuous protection against falls.

Gemtor self-retracting Devices (lifelines, lanyards and fall limiters) are available in a full range of configurations to suit virtually any work application and are ANSI Z359.14 Compliant.



Click here for SRD Accessories (carabiners/connectors and carrying bags)

G-Force SRD Series Self-Retracting Lifelines & Fall Limiters (connector Included)

G-Force - 6 ft. Fall Limiter with Carabiner



Features:

  • Engineered nylon over steel frame housing

  • Swivel eye

  • .75” wide Ultra-high-molecular-weight polyethylene (UHMWPE)/polyester blend webbing.

  • Locking snaphook with 3600 lbs. gate (meets ANSI Z359.12)

  • Fall indicator

  • Includes ANSI Z359.12 compliant carabiner with 3600 lbs. gate

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:

SRD-6W - 6 ft. long, locking snaphook with 3600 lbs. gate, 2 lbs.

G-Force - 6 ft. Fall Limiter with Carabiner



Features:

  • Engineered nylon over steel frame housing

  • Swivel eye

  • .75” wide Ultra-high-molecular-weight polyethylene (UHMWPE)/polyester blend webbing.

  • Locking snaphook with 2 1/2", 3600 lbs. gate (meets ANSI Z359.12)

  • Fall indicator

  • Includes ANSI Z359.12 compliant carabiner with 3600 lbs. gate

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:
SRD-6WZ - 6 ft. long, rebar snaphook with 2 ½", 3600 lbs. gate, 3 lbs.



G-Force - Twin 6 ft., Fall Limiters with Harness Conncetor



Features:

  • Engineered nylon over steel frame housing

  • .75” wide Ultra-high-molecular-weight polyethylene (UHMWPE)/polyester blend webbing.

  • Locking snaphook with 3600 lbs. gate (meets ANSI Z359.12)

  • Includes Universal Harness/SRD Connector (ANSI Z359.12 compliant)

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:

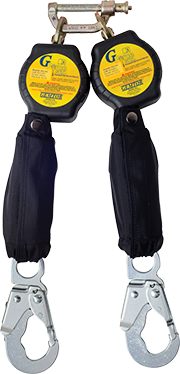

SRD-T6W - Includes two (2) SRD-6W fall limiters with 3/4" snaphook gate and SHC-2U Harness/SRD connector, 4.2 lbs.



G-Force - Twin 6 ft., Fall Limiters with Harness Conncetor



Features:

  • Engineered nylon over steel frame housing

  • .75” wide Ultra-high-molecular-weight polyethylene (UHMWPE)/polyester blend webbing.

  • Locking snaphook with 2 1/2", 3600 lbs. gate (meets ANSI Z359.12)

  • Includes Universal Harness/SRD Connector (ANSI Z359.12 compliant)

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:

SRD-T6WZ - Includes two (2) SRD-6W fall limiters with 2 1/2" rebar hooks and SHC-2U Harness/SRD connector, 5.75 lbs.

G-Force - 11 ft. Fall Limiter with Carabiner



Features:

  • Engineered nylon over steel frame housing

  • Swivel eye

  • 1” wide Ultra-high-molecular-weight polyethylene (UHMWPE)/polyester blend webbing.

  • Locking snaphook with 3600 lbs. gate (meets ANSI Z359.12)

  • Fall indicator

  • Includes ANSI Z359.12 compliant carabiner with 3600 lbs. gate

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:

SRD-11W - 11 ft. long, locking snaphook with 3600 lbs. gate, 3 lbs.

G-Force - 11 ft. Fall Limiter with Carabiner



Features:

  • Engineered nylon over steel frame housing

  • Swivel eye

  • 1” wide Ultra-high-molecular-weight polyethylene (UHMWPE)/polyester blend webbing.

  • Locking snaphook with 2 1/2", 3600 lbs. gate (meets ANSI Z359.12)

  • Fall indicator

  • Includes ANSI Z359.12 compliant carabiner with 3600 lbs. gate

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:
SRD-11WZ - 11 ft. long, rebar snaphook with 2 ½", 3600 lbs. gate, 4 lbs.

G-Force - 10' Cable Self-Retracting Lifeline with Carabiner



Features:

  • High strength polymer housing

  • 3/16" galvanized steel cable lifeline

  • Swivel locking snaphook with fall indicator and 3600 lbs. gate (meets ANSI Z359.12)

  • Includes ANSI Z359.12 compliant carabiner with 3600 lbs. gate

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:

SRD-9G - 10 ft. long, swivel locking snaphook with integral fall indicator and 3600 lbs. gate, 5.5 lbs.


G-Force - 30' Cable Self-Retracting Lifelines with Carabiner



Features:

  • Engineered plastic housing

  • Floding carrying handle

  • 3/16" galvanized steel cable lifeline

  • Swivel eye connection on housing

  • Swivel locking snaphook with fall indicator and 3600 lbs. gate (meets ANSI Z359.12)

  • Includes ANSI Z359.12 compliant carabiner with 3600 lbs. gate

  • Meets OSHA, ANSI Z3591.14-2021 (Class 1)

Available Models:

SRD-30G - 30 ft. long, swivel locking snaphook with integral fall indicator and 3600 lbs. gate 12.6 lbs.

G-Force - 50' & 65' Cable Self-Retracting Lifelines with Carabiner



Features:

  • Engineered plastic housing

  • Integrated carrying handle

  • 3/16" galvanized steel cable lifeline

  • Swivel eye connection on housing

  • Swivel locking snaphook with fall indicator and 3600 lbs. gate (meets ANSI Z359.12)

  • Includes ANSI Z359.12 compliant carabiner with 3600 lbs. gate

  • Meets OSHA, ANSI Z3591.14 (Class A)

Available Models:

SRD-50G - 50 ft. long, swivel locking snaphook with integral fall indicator and 3600 lbs. gate 12.6 lbs.

SRD-65G - 65 ft. long, swivel locking snaphook with integral fall indicator and 3600 lbs. gate 12.6 lbs.

G-Force SRL with Aluminum/SS housing and SS Cable



Features:

  • Aluminum and stainless steel housing

  • 3/16" stainless steel cable lifeline

  • Fixed eye connection on housing

  • Swivel locking snaphook with fall indicator and 3600 lbs. gate (meets ANSI Z359.12)

  • Meets OSHA, ANSI Z3591.14 (Class A)

Available Models:

SRA-30S - 30 ft. long, swivel locking snaphook with integral fall indicator and 3600 lbs. gate 13.1 lbs.

Sentry Self-Retracting Lifelines

SRL Series - Steel Housing


Features:

  • Spring loaded drum with sealed ball bearings for smooth cable extension and retraction

  • Weather sealed stamped steel housing

  • 3/16" galvanized steel cable, stainless steel cable or Tech 12 non-conductive synthetic rope lifeline

  • Swivel locking snaphook with fall indicator and 3600 lbs. gate (meets ANSI Z359.12)

  • Internal components made of bronze, stainless steel and aluminum

  • Meets OSHA, ANSI Z359.14-2021 (Class 1)

  • Made in USA

Available Models:

SRL-30 - 30' long galvanized steel lifeline, 16 lbs.
SRL-30S - 30' long stainless steel lifeline, 16 lbs.
SRL-50 - 50' long galvanized steel lifeline, 19 lbs.
SRL-50S - 50' long stainless steel lifeline, 19 lbs.
SRL-65 - 65' long galvanized steel lifeline, 27 lbs.
SRL-65S - 65' long stainless steel lifeline, 27 lbs.

CSA Z259.2 approved model available upon request.

SL2 Series - Cast Aluminum Housing



Features:

  • Spring loaded drum with sealed ball bearings for smooth cable extension and retraction

  • Weather sealed die-cast aluminum housing

  • 3/16" galvanized steel cable, stainless steel cable or Tech 12 non-conductive synthetic rope lifeline

  • Swivel locking snaphook with fall indicator and 3600 lbs. gate (meets ANSI Z359.12)

  • Internal components made of bronze, stainless steel and aluminum

  • Meets OSHA, ANSI Z359.14-2021 (Class 1)

  • Made in USA

Available Models:
SL2-30 - 30' long galvanized steel lifeline, 20 lbs.
SL2-30S - 30' long stainless steel lifeline, 20 lbs.
SL2-50 - 50' long galvanized steel lifeline, 29 lbs.
SL2-50S - 50' long stainless steel lifeline, 29 lbs.
SL2-100 - 100' long galvanized steel lifeline, 45 lbs.
SL2-100S - 100' long stainless steel lifeline, 45 lbs.

CSA Z259.2 approved model available upon request.

SWL Self-Retracting Lanyard

SWL Series - Web Lifeline

Features:

  • Spring loaded drum with sealed ball bearings for smooth cable extension and retraction

  • Weather sealed die-cast aluminum housing

  • 1" wide polyester web lifeline

  • Swivel locking snaphook with fall indicator and 3600 lbs. gate (meets ANSI Z359.12)

  • Internal components made of bronze, stainless steel and aluminum

  • Meets OSHA, ANSI Z359.14-2021 (Class 1)

  • Made in USA

Available Models:

SWL-20 - Steel housing, 20' long web lifeline, 12 lbs.
SWL-30 - Steel housing, 30' long web lifeline, 14.5 lbs.

Return to top of page

Self-Retracting Lanyard

8' Self-Retracting Lanyard
Model # RL-8 - 1 3/4" wide x 8' long, polyester webbing with a locking snaphook permanently attached. Unit locks within a few inches when a fall is sensed. Integral shock absorber pack protects against overloading. Housing is made of heavy-duty steel with a chemical, environmental, and impact resistant cover.

Connectors, Carabiners & Equipment Carrying Bags



Model # SHC-2U

Universal SRD connector for Full-Body Harnesses

Connect up to two (2) lightweight SRDs/SRLs below harness D-ring

Overall length - 4”
Overall Height - 1”
Strength 5000 lbs. - Meets ANSI Z359.12



Model # 5105

Steel offset D-carabiner with automatic lock
Overall length - 4 7/16”
Gate opening - 1”
Gate Strength 3600 lbs. - Meets ANSI Z359.12

Tensile strength - 10,000 lbs



Model # 5107

Aluminum offset D-carabiner with automatic lock
Overall length - 4 7/16”
Gate opening - 3/4”

Gate Strength 3600 lbs. - Meets ANSI Z359.12
Tensile strength - 5,000 lbs.

Model # 5710

Alloy steel large carabiner with automatic lock
Overall length - 9 3/8”
Gate opening - 2”

Gate Strength 3600 lbs. - Meets ANSI Z359.12
Tensile strength - 5,000 lbs.



Model # 5742

Aluminum, side opening large carabiner with triple locking gate.

Overall length - 7 1/4”
Gate opening - 2”
Tensile strength - 9,000 lbs.

Meets NFPA 1983-2017

CLASSIFIED BY UNDERWRITERS LABORATORIES INC. IN ACCORDANCE WITH NFPA 1983-2017

5F04 (Emergency Services Auxiliary Equipment)

Model # WB1

Carrying bag for self-retracting lifelines, retrieval winches or other equipment. Made of Cordura with a solid reinforced bottom and feet. Measures 12" high x 12" wide x 20" long.



Model # WB2

Same as above except without reinforced bottom and feet



Model # CB1

Made of Cordura and measures 10" high x 10" wide x 18" long. Used for carrying harnesses, tools and other equipment.
