Confined Space Equipment

Gemtor complete non-entry confined space retrieval systems come complete with everything you need to enter a vertical confined space with an acceptable means of access, except a full-body harness which should be selected based on application needs and user preferences. If there is no acceptable means of access, then a Man-Rated winch such as the Model # MRW-50 will also need to be added to the system.

Click here for Accessories (carabiners and carrying bags)

 Complete Systems

Complete Tripod System Includes:
Model # TP-7 Aluminum Tripod
Model # RS3 Arresting/Retrieval/Lowering Device
Model # 51C Split Pulley

Model # 5105 Carabiner

Available Systems:
Model # CSRS3-50 Includes: TP-7, RS3-50 with 50' of galvanized steel cable

Model # CSRS3-50S Includes: TP-7, RS3-50S with 50' of stainless steel cable

Model # CSRS3-100 Includes: TP-7, RS3-100 with 100' of galvanized steel cable

Model # CSRS3-100S Includes: TP-7, RS3-100S with 100' of stainless steel cable

Complete Quadpod System Includes:
Model # QP-4 - Aluminum Quadpod
Model # RS3 - Arresting/Retrieval/Lowering Device


Available Systems:
Model # CSQP-4 - Includes: QP-4, RS3-50 with 50' of galvanized steel cable

Model # CSQP-4S - Includes: QP-4, RS3-50S with 50' of stainless steel cable

Complete Davit System Includes:
Model # QP-1 - Aluminum Quadpod

Model # RS3 - Arresting/Retrieval/Lowering Device


Available Systems:
Model # CSQP-1 - Includes: QP-1, RS3-50 with 50' of galvanized steel cable

Model # CSQP-1S - Includes: QP-1, RS3-50S with 50' of stainless steel cable

Return to top of page

 Tripods, Quadpods & Davits

Tripods

The durable, lightweight, aluminum tripod features auto-locking, telescoping legs. Cast aluminum tripod head comes complete with two integrated locking snaphooks for attachment of pulleys or auxiliary equipment. Each of the tripod’s legs may be independently adjusted to compensate for uneven terrain using quick insert locking pins. Anti-skid rubber feet and leg chains help make Gemtor tripods OSHA compliant anchorages capable of supporting 5,000 lbs. (310 lbs. working load)

Available Models:
Model # TP-7 - weight 40 lbs., Height 4' - 7', Leg span 60"

Model # TP-9 - weight 46 lbs., Height 57 1/2" - 9', Leg span 73"

Quadpod

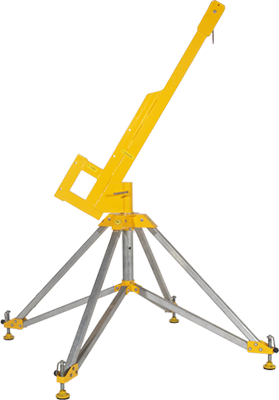

Model # QP-4 - Portable Quadpod
Ideal for situations where the use of a tripod is either impractical or impossible. The Quadpod is easy to set-up and collapse and each leg is independently adjustable to compensate for uneven terrain. The removable boom rotates 360 and locks in any position. Quadpod and Davit components can be used interchangeabley. Height 90", Reach 26", Tested static load 5400 lbs., Working load 310 lbs., Distance between legs 54".

Includes:

  • QP-D - Rotating Boom

  • QP-L - Portable Base

Davit

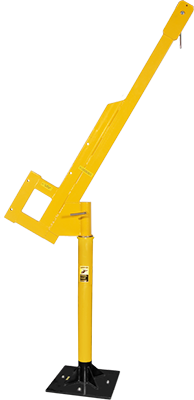

Model # QP-1 - Permanent Davit
The davit’s permanent base can be mounted to steel flooring or concrete, or on the back of a truck and is especially useful for tank entry or over edges. A removable boom that rotates 360 easily attaches to the base and can be locked in any position to offer flexibility for maneuvering equipment or a worker. Additional bases can be ordered (see below) and one or more booms can be moved among many permanently installed (QP-B) and/or portable (QP-L) bases. Height 89", Reach 26", Tested static load 5400 lbs., Working Load 310 lbs.

Includes:

  • QP-D - Rotating Boom

  • QP-B - Permanent Base

  • QP-P Extension Pole

Return to top of page

 Winches

Gemtor Arresting/Retrieval/Lowering device (Three-way)

Multi-function fall arrest/retrieval device helps protect
a worker from falling and has an integral winch mechanism that allows a worker to be raised to the surface quickly and easily. Attaches to any Gemtor Tripod, Quadpod, or Davit with quick-insert locking pins or can be hung from overhead using an optional carabiner. Features include a large, rubber-coated knob which makes engaging and disengaging retrieval mode an easy, one-hand operation. Precision internal components and a strong, weather-resistant cast aluminum housing ensure reliability and dependability. The Model # RS3 has two independent braking systems: an energy absorbing centrifugal brake arrests a fall softly within 24"; a friction brake activates immediately when raising or lowering is stopped and holds the load in place.

The unit is supplied with 3/16" diameter galvanized or stainless steel cable lifeline in 50' or 100' lengths and has a permanently attached locking swivel snaphook for connection to a full-body harness.

Available Models:
Model # RS3-50 50' of galvanized steel cable, 45 lbs.

Model # RS3-50S 50' of stainless steel cable, 45 lbs.
Model # RS3-100 100' of galvanized steel cable, 65 lbs.

Model # RS3-100S 100' of stainless steel cable, 65 lbs.

Gemtor Man Rated Winches

Designed for raising or lowering an employee into a
work position or for use in rescue operations. Features cable guide for automatic placement of cable on drum and two independent braking systems to ensure reliable operation. Housing is made of sturdy lightweight cast aluminum. Attaches to any Gemtor Tripod, Quadpod, or Davit. Comes with 3/16" diameter galvanized or stainless steel cable with locking swivel snaphook permanently attached. NOT FOR FALL ARREST.

Available Models:
Model # MRW-50 50' of galvanized steel cable, 35 lbs.
Model # MRW-50S 50' of stainless steel cable, 35 lbs.
Model # MRW-100 100' of galvanized steel cable, 45 lbs.
Model # MRW-100S 100' of stainless steel cable, 45 lbs

Gemtor Work Winches

Attaches to any Gemtor Tripod, Quadpod, or Davit and can be used for raising and lowering materials. Comes with locking swivel snaphook permanently attached to galvanized or stainless steel 3/16" diameter cable. Features a cable guide for automatic placement of cable on drum.

NOT FOR FALL ARREST or RAISING or LOWERING of PERSONNEL.

Available Models:
Model # MW-50 50' of galvanized steel cable, 20 lbs.
Model # MW-50S 50' of stainless steel cable, 20 lbs.
Model # MW-100 100' of galvanized steel cable, 30 lbs.

Model # MW-100S 100' of stainless steel cable, 30 lbs.

Return to top of page

 Auxiliary Equipment

Carabiner

Model # 5105

Steel offset D-carabiner with automatic lock
Overall length - 4 7/16”
Gate opening - 1”
Gate Strength 3600 lbs. - Meets ANSI Z359.12

Tensile strength - 10,000 lbs

Pulley

Model # 51C Stainless steel cheeks open to allow placement of cable or rope on 3/4" wide 31/2" diameter aluminum sheave.
Weighs 1 1/4 lbs. Working load 310 lbs.

Wristlets with Yoke Lanyard

Model # 930Y Wristlets are made of durable 3-ply neoprene impregnated nylon and are designed for use in confined spaces or tanks with narrow openings where the worker may have to be withdrawn. Wristlets are sold in pairs; each wristlet has a permanently attached 1" wide x 6' long (3' each leg) polyester web yoke lanyard with a D-ring in the center.

Wristlets

Model # 930 Same as Model # 930Y, except without yoke lanyard.

Y-Lanyards for Retrieval and Suspension



Model # 261SB - Yoke Lanyard - Two-legged 1" wide polyester web lanyard with a #5155 locking snaphook at each end and a O-ring in the center. Spreader bar separates lanyard’s legs for attachment to shoulder D-rings of harness. Standard length: 5' (30" each leg).



Model # 261LY - Same as above except without spreader bar. Standard length: 6' (3' each leg).

Return to top of page

 Equipment Bags

Model # CB1

Made of Cordura and measures 10" high x 10" wide x 18" long. Used for carrying harnesses, tools and other equipment.



Model # WB1

Carrying bag for self-retracting lifelines, retrieval winches or other equipment. Made of Cordura with a solid reinforced bottom and feet. Measures 12" high x 12" wide x 20" long.


Model # WB2

Same as above except without reinforced bottom and feet



Model # TB7

Carrying bag for Model # TP-7 tripod, made of polyester reinforced vinyl.



Model # TB9
Carrying bag for Model # TP-9 tripod, made of polyester reinforced vinyl



Return to top of page

Carabiners



Model # 5742

Aluminum, side opening large carabiner with triple locking gate.

Overall length - 7 1/4
Gate opening - 2
Tensile strength - 9,000 lbs.

Meets NFPA 1983-2012



Model # 5107

Aluminum offset D-carabiner with automatic lock
Overall length - 4 7/16”
Gate opening - 3/4”

Gate Strength 3600 lbs. - Meets ANSI Z359.12
Tensile strength - 5,000 lbs.

Model # 5710

Alloy steel large carabiner with automatic lock
Overall length - 9 3/8”
Gate opening - 2”

Gate Strength 3600 lbs. - Meets ANSI Z359.12
Tensile strength - 5,000 lbs.

Model # 5741

Alloy steel, side opening large carabiner with automatic lock
Overall length - 7 1/4”
Gate opening - 2”
Tensile strength - 9,000 lbs.

Meets NFPA 1983-2012
