Horizontal Lifelines

Gemtor Horizontal Lifeline Systems are engineered to provide a temporary OSHA-compliant anchorage point when no overhead anchorage exists or when a worker needs the ability to move across a horizontal surface while tied off. When used in conjunction with an approved full-body harness and lanyard, the complete system has the ability to arrest a worker’s fall and limit the forces transmitted to the worker and the system’s anchor points. Many system configurations are available to accommodate work site and environmental conditions.
Temporary Horizontal Lifeline System with Stanchions

HL3 Series - Horizontal Lifeline System

Single and Multi-Span

Gemtor’s single/multi span horizontal lifeline system is the perfect choice for worker safety during bridge and building construction. Designed for quick and easy mounting to structural I Beams, this complete kit includes everything you need to protect your workers while performing their tasks at heights. Each two (2) stanchion system can be used on a span of up to 60 feet. Intermediate stanchions and Add-On systems can be deployed to create a system of unlimited length.

Large mounting bolts that provide more surface area contact are located on the top side of the stanchion base make attachment to a beam safer and easier than competitive systems. The stanchions feature an adjustable U shaped clamp and safety chain system that wraps around the opposite top flange of the beam providing additional security. The chain is attached to a bolt that has a long handled nut for ease of tightening.

The stanchions are extremely strong yet lightweight. They attach to the beam in a manner that minimally impacts the space required for the body of a worker to pass by. Stanchions fit beam flanges up to 3" thick and up to 36" wide.





HL3-180

Complete Systems:

HL3-30 – Portable Horizontal Lifeline System for up to 30 ft. span. Includes; two (2) stanchions, energy absorber, cable and hardware.

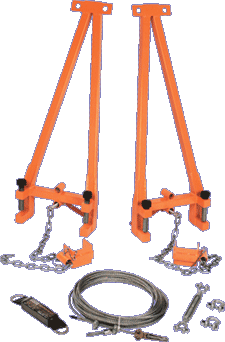

HL3-60 – Portable Horizontal Lifeline System for up to 60 ft. span. Includes; two (2) stanchions, energy absorber, cable and hardware.

HL3-120 – Multi-span Portable Horizontal Lifeline System for up to 120 ft. span. Includes; two (2) end stanchions, one (1) passable intermediate stanchion, energy absorber, cable and hardware.

HL3-180 – Multi-span Portable Horizontal Lifeline System for up to 180 ft. span. Includes; two (2) end stanchions, two (2) passable intermediate stanchions, energy absorber, cable and hardware.

Click here to view flyer

HL3-6A HL3-IS
Add-On Systems

HL3-3A – Portable Horizontal Lifeline Add-on System for up to 30 ft. span. Includes; one (1) end stanchion, energy absorber, cable and hardware.

HL3-6A – Portable Horizontal Lifeline Add-on System for up to 60 ft. span. Includes; one (1) end stanchion, energy absorber, cable and hardware.

HL3-12A – Portable Horizontal Lifeline Add-on System for up to 120 ft. span. Includes; one (1) end stanchion, one (1) intermediate end stanchion, energy absorber, cable and hardware.

HL3-18A – Portable Horizontal Lifeline Add-on System for up to 180 ft. span. Includes; one (1) end stanchion, two (2) intermediate end stanchions, energy absorber, cable and hardware.

Components & Replacement Parts

HL3-S1 – Additional stanchion for portable horizontal lifeline system

HL3-IA – Bolt-on, passable intermediate adapter for use with HL3-S1

HL3-IS - Intermediate stanchion converts single-span system to multi-span system or allows multi-span system to be expanded up to 180 ft. total length.



Unitensioner® Horizontal Lifeline Systems

Single and Multi-Span

Click here for Demo

The Unitensioner®
The patented Unitensioner® device is the heart of Gemtor’s Temporary or Permanent Horizontal Lifeline Systems and takes the guesswork out of setting up a horizontal lifeline. The Unitensioner® is easy to use and performs the following functions:
Allows the user to tighten/stretch the lifeline, helps maintain desired tension by preventing over-tightening, and effectively limits fall arrest forces on the worker and the anchor points without the use of an energy absorbing lanyard.

Complete Temporary Systems - For use where vertical columns capable of supporting at least 5,000 lbs. are available. An anchor sling is attached to a vertical support at each end, and the lifeline is tensioned between them. If the span exceeds 60', intermediate supports must be used at intervals of 60' or less. Maximum span 300'.  Please note that systems can be configured using Fixed Beam Anchors (i.e. VBA-121), Anchor D-rings (i.e. AD-2), or other types of anchorage connectors.

Synthetic Rope Horizontal Lifeline
Model # HL1-60

System Includes:
• Model # HL1 Unitensioner® for 5/8" diameter
HSP synthetic lifeline
• 5/8" diameter HSP Synthetic lifeline
• Two (2) 6' long choker style web anchor slings
• Two (2) automatic locking steel carabiners
• Two (2) forged alloy steel O-rings
• Two (2) adjustable length web lanyards
• Carrying bag

Wire Rope Horizontal Lifeline
Model # HL2-60

System Includes:

• Model # HL2 Unitensioner® for 5/16" diameter stainless steel lifeline
• 5/16" diameter stainless steel lifeline
• Two (2) 6' long choker style web anchor slings
• Three (3) automatic locking steel carabiners
• Two (2) adjustable length web lanyards
• Carrying bag

Portable Stanchions - When suitable vertical supports are not available, a model # HL3-S1 can be attached at each end of a horizontal I-beam and the lifeline can be tensioned between them. If the span exceeds 60', a model # HL3-IS intermediate support must be used at intervals of 60' or less. The unique angled design of Gemtor's portable stanchions helps keep the lifeline out of the worker's way.

End Stanchion

HL3-S1 – Additional stanchion for portable horizontal lifeline systems. Fits beam flanges up to 3" thick and up to 36" wide.

Intermediate Stanchion

HL3-IS - Intermediate stanchion converts single-span system to multi-span system or allows multi-span system to be expanded up to 180 ft. total length.  Fits beam flanges up to 3" thick and upto 36" wide.

Glider for Quick PassTM system

Model # HL2G1

Glides along Gemtor HL2 horizontal lifeline system as a worker moves, and automatically bypasses quick pass equipped intermediate supports without user intervention.



Click here for demo
